The CG-AW1 WiFi alarm system is a DIY, self-monitored home security alarm system, which is ready to go as soon as you connect it to your WiFi router. Plug in the power, download the free iOS or Android app, set up WiFi, add and pair wireless sensors or accessories and go out with complete peace of mind.

Whenever the CG-AW1 is triggered, the built-in siren goes off loud and the system sends you push notifications in real time, so you are always in the know no matter where you are.

• alarm operating with WiFi


• controlled with free app, remote control or RFID


• self-monitoring with real-time notification app notifications for alarm, emergency & tamper


• event history


• supports up to 30 wireless accessories and 10 remote controls

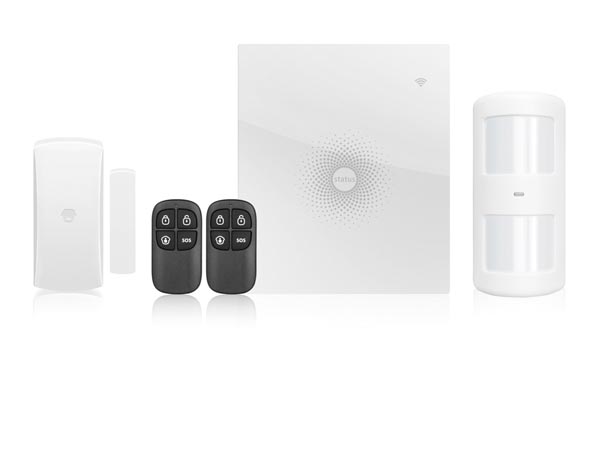

• contents:



  • CG-PIR-910: pet-immune PIR motion detector


  • CG-DWC-102: door/window contact


  • CG-RC-80: remote control (2 pcs)





Especificaciones

• especificaciones:



  • power supply: 12 VDC 500 mA


  • wifi: IEEE 802.11b/g/n, 2.4 GHz


  • standby current: < 27 mA


  • corriente de alarma: < 180 mA


  • battery: 3.7 V 600 mAh Li-ion


  • battery recharge cycle: 300 times


  • sirena interna: 85 dB


  • radio frequency: 315 MHz or 433 MHz


  • housing material: ABS plastic + acrylic


  • condiciones de funcionamiento:



    • temperatura: 0 °C - 55 °C


    • humedad: ≤ 80% (non-condensing)






  • dimensions (panel): 125 x 150 x 30 mm
